KONFIGURASI OSPF DI PACKET TRACER

Awal mula kita buat sebuah jaringan, Seperti gambar di bawah..
Dengan menggunakan 3 buah Router, 3 Buah Swith dan 3 Buat PC..




Selanjutnya..
berikan IP Address pada setiap PC yang terhubung.  Contoh sebagai berikut ..

1. Pemberian PC 1 dengan nama "PC SATU"..


1. Pemberian PC 2 dengan nama "PC DUA"..

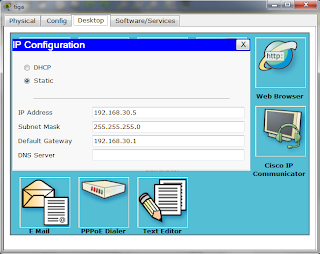

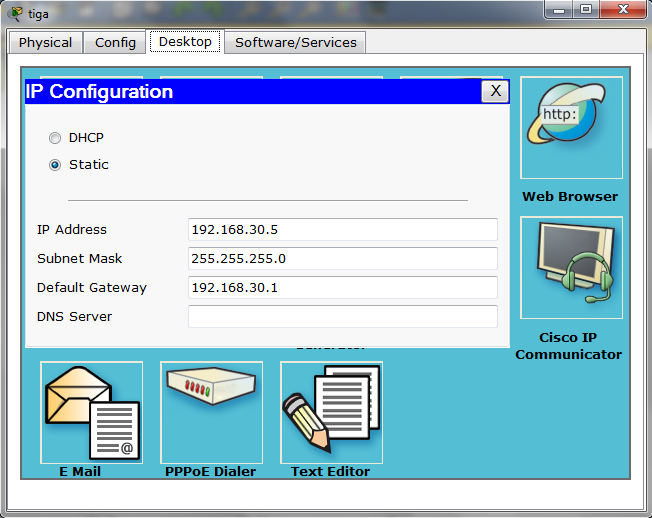

1. Pemberian PC 1 dengan nama "PC TIGA"..


Selanjutnya, berikan IP Address pada setiap router yang terhubung. Sebagai contoh pengaturan IP di router adalah sebagai berikut :

Router 1

     --- System Configuration Dialog ---

Continue with configuration dialog? [yes/no]: no


Press RETURN to get started!



Router>enable
Router#configure terminal
Enter configuration commands, one per line.  End with CNTL/Z.
Router(config)#int fa0/0
Router(config-if)#ip add 192.168.10.1 255.255.255.0
Router(config-if)#no shut

Router(config-if)#
%LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up

Router(config-if)#exit
Router(config)#int se2/0
Router(config-if)#ip add 172.16.1.1 255.255.0.0
Router(config-if)#band 125
Router(config-if)#cl ra 125000
Router(config-if)#no shut

%LINK-5-CHANGED: Interface Serial2/0, changed state to down
Router(config-if)#exit

Konfigurasi OSPF pada Router 1,


Router(config)#router ospf 8
Router(config-router)#net 192.168.10.1 255.255.255.0 area 0
Router(config-router)#net 172.16.1.1 255.255.0.0 area 0
Router(config-router)#log-adjacency
Router(config-router)#end
Router#
%SYS-5-CONFIG_I: Configured from console by console
wr
Building configuration...
[OK]
Router#


Router 2

  --- System Configuration Dialog ---

Continue with configuration dialog? [yes/no]: no


Press RETURN to get started!



Router>enable
Router#configure terminal
Enter configuration commands, one per line.  End with CNTL/Z.
Router(config)#int fa0/0
Router(config-if)#ip add 192.168.20.1 255.255.255.0
Router(config-if)#no shut

Router(config-if)#
%LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up

Router(config-if)#exit
Router(config)#int se2/0
Router(config-if)#ip add 172.16.2.1 255.255.0.0
Router(config-if)#band 125
Router(config-if)#no shut

%LINK-5-CHANGED: Interface Serial2/0, changed state to down
Router(config-if)#exit

Router(config-if)#exit
Router(config)#int se3/0
Router(config-if)#ip add 10.10.1.1 255.0.0.0
Router(config-if)#band 125
Router(config-if)#cl ra 125000
Router(config-if)#no shut

%LINK-5-CHANGED: Interface Serial3/0, changed state to down
Router(config-if)#exit

Konfigurasi OSPF pada Router 2,


Router(config)#router ospf 8
Router(config-router)#net 192.168.20.1 255.255.255.0 area 0
Router(config-router)#net 172.16.2.1 255.255.0.0 area 0
Router(config-router)#net 10.10.1.1 255.0.0 area 1
Router(config-router)#log-adjacency
Router(config-router)#end
Router#
%SYS-5-CONFIG_I: Configured from console by console
wr
Building configuration...
[OK]
Router#


Router 3

     --- System Configuration Dialog ---

Continue with configuration dialog? [yes/no]: no


Press RETURN to get started!



Router>enable
Router#configure terminal
Enter configuration commands, one per line.  End with CNTL/Z.
Router(config)#int fa0/0
Router(config-if)#ip add 192.168.30.1 255.255.255.0
Router(config-if)#no shut

Router(config-if)#
%LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up

Router(config-if)#exit
Router(config)#int se2/0
Router(config-if)#ip add 10.10.2.1 255.0.0.0
Router(config-if)#band 125
Router(config-if)#no shut

%LINK-5-CHANGED: Interface Serial2/0, changed state to down
Router(config-if)#exit



Konfigurasi OSPF pada Router 3,


Router(config)#router ospf 8
Router(config-router)#net 192.168.30.1 255.255.255.0 area 1
Router(config-router)#net 10.10.2.1 255.0.0.0 area 1
Router(config-router)#log-adjacency
Router(config-router)#end
Router#
%SYS-5-CONFIG_I: Configured from console by console
wr
Building configuration...
[OK]
Router#



Setelah dikonfigurasi, coba di ping dari PC "SATU" ke PC "DUA" dan PC "TIGA" , jika berhasil maka konfigurasi anda SUKSES untuk ketiga protocol tersebut, seperti gambar di bawah..




Keliatannya cukup mudah ya, tapi mistis. cukup tutorial nya sampe disini.... Terima Kasih...
